Turn loose waste into dense, mill-size bales that command the highest downstream rebate value. Perfectly sized for operations that need efficiency without sacrificing floor space. Built tough for consistent performance and long-term reliability.
Right-sized and reliably built for serious performance without overwhelming your floor space.
A low-profile, full-capacity baler designed for tight spaces and low ceilings. Produces dense bales without sacrificing performance, making it ideal for light-duty applications such as cardboard and shrink wrap in retail or small distribution environments.
Engineered for facilities with height restrictions that still require larger bale capacity. Handles moderate volumes of OCC, shrink wrap, and mixed recyclables efficiently while maintaining a compact footprint.
Optimized for old corrugated containers (OCC). Enhanced ram pressure and chamber design deliver dense, consistent bales that maximize payload efficiency and reduce handling costs—perfect for high-volume cardboard recycling.
A dependable mid-duty baler for retail, distribution, and light industrial settings. Produces mill-size bales for cardboard and other high-volume materials with proven durability and reliable performance.
Built for higher compression force, this baler creates denser bales for high-volume materials. Ideal for operations that need more power without moving to heavy-duty equipment.
Heavy-duty construction and reinforced components make this baler a workhorse for demanding environments. Handles tough materials and high throughput with consistent performance and long-term reliability.
The ultimate solution for
extreme-duty applications in manufacturing plants, recycling centers, and other high-impact environments. Designed for maximum durability, compression force, and bale density under the harshest conditions.

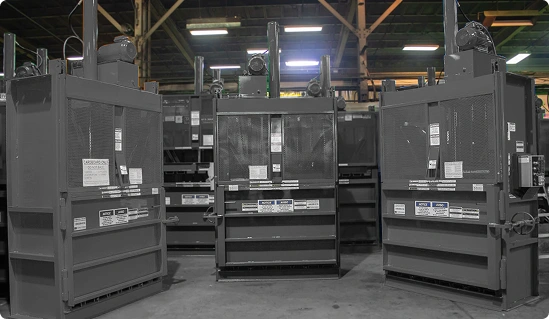

Komar 60″ vertical balers deliver mill-size bales in a compact footprint—built for durability, compliance, and consistent performance in space-constrained facilities.
Loose material goes in, mill-standard 60" bales come out—ready for downstream acceptance and maximum rebate value.
High-performance hydraulics deliver uniform compression force, ensuring every bale meets weight and density standards for easier handling and transport.
UL-listed electrical components and OSHA-compliant safety features keep operations secure and equipment running within regulatory guidelines.
Heavy-gauge steel construction and reinforced stress points resist wear, fatigue, and failure—built for years of dependable service.
Compact profiles fit where space is limited, solving ceiling height challenges without compromising bale size or throughput.
Note: Options may not be available for all models.
“We went from paying $18,000 to $20,000 a year for plastic removal by a local waste company to selling our compacted bales to our pots and tray manufacturers for $8,000 to $10,000 per year! So… we paid for our baler in less than a year! Every time the baler runs, it sounds just like printing money. Thanks for delivering a great product and one that does exactly what you said it would! Very refreshing to deal with an honorable company.”
John Hardiman, American Farms
The 60-inch vertical baler remains one of the most widely adopted recycling machines industry-wide—and for good reason.
| 60″ Vertical Balers |  V60LP30 |  V60LP36 |  V60CB | V60SD | V60HP | V60HD |  V60XD |
|---|---|---|---|---|---|---|---|
| Overall (W×D×H) | 87″×45.5″×105″ | 94.5″×51.75″×95.5″ | 88″×45.5″×139″ | 78″×41″×152″ | 78″×41″×152″ | 78″×48″×152″ | 91.5″×43″×156″ |
| Feed Height | 36″ | 33″ | 54.5″ | 54.75″ | 54.75″ | 54″ | 49.5″ |
| Bale Weight (OCC) | Up to 700 lbs | 600 – 800 Lbs | Up to 1,000 lbs | 850 – 1,000 Lbs | 900 – 1,100 Lbs | 1,000 – 1,300 Lbs | Up to 1,300 lbs |
| Bale Width | 60″ | 60″ | 60″ | 60″ | 60″ | 60″ | 60″ |
| Bale Depth | 30″ | 36″ | 30″ | 30″ | 30″ | 30″ | 30″ |
| Bale Height | 30″ | 30″ | 48″ | 48″ | 48″ | 48″ | 48″ |
| No. of Bale Tie Slots | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Pump | 12 GPM (HiLo) | 10.5 GPM | 10.5 GPM | 10.5 GPM | 10.5 GPM | 10.5 GPM | 14/4 GPM (HiLo) |
| Control Voltage | 110 – 120 Vac | 110 – 120 Vac | 110 – 120 Vac | 110 – 120 Vac | 110 – 120 Vac | 110 – 120 Vac | 110 – 120 Vac |
| Voltage, 3-phase | 208/230/480V | 208/230/480V | 208/230/480V | 208/230/480V | 208/230/480V | 208/230/480V | 208/230/480V |
| Ship Weight | 3,650 lbs | 4,720 Lbs | 6,000 lbs | 4,510 Lbs | 4,720 Lbs | 5,400 Lbs | 6,000 lbs |
| Cylinder Bore | 6″ | 6″ | 6″ | 6″ | 6″ | 6″ | 7″ |
| Cylinder Rod | 3.5″ | 3.5″ | 3.5″ | 3.5″ | 3.5″ | 3.5″ | 4″ |
| Cylinder Stroke | 30″ | 27″ | 42″ | 48″ | 27″ | 48″ | 60″ |
| Motor | 10 Hp | 10 Hp | 10 Hp | 10 Hp | 10 hp | 10 Hp | 10 Hp |
| Ejection System | Semi-Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic |
| Hydraulic Tank Capacity Gallons | 22 | 22 | 22 | 22 | 22 | 22 | 40 |
| Average Cycle Time | 25 sec | 32 sec | 49 sec | 56 sec | 32 sec | 56 sec | 70 sec |
| Working Pressure | 2,200 psi | 2,400 psi | 2,000 psi | 2,000 psi | 2,400 psi | 2,400 psi | 2,200 psi |
| Relief Pressure | 2,400 psi | 2,700 psi | 2,500 psi | 2300 psi | 2,700 psi | 2,700 psi | 2,500 psi |
| Working Force | 62,202 lbs | 67,858 lbs | 56,548 lbs | 56,538 lbs | 67,858 lbs | 67,858 lbs | 84,667 lbs |
| Relief Force | 67,857 lbs | 76,341 lbs | 62,172 lbs | 65,019 lbs | 76,341 lbs | 76,340 lbs | 96,211 lbs |
| Normal Ram Pressure | 35 psi | 37.1 psi | 32.0 psi | 30.9 psi | 32.7 psi | 37.0 psi | 47.0 psi |
| Max Ram Pressure | 37.7 psi | 41.7 psi | 35 psi | 35.5 psi | 36.7 psi | 41.7 psi | 51.3 psi |
Our solutions are tailored to meet the unique needs of a wide range of industries:
A 60-inch vertical baler produces mill-size bales that meet industry standards for transport and recycling. These dense bales qualify for the best rebate rates, reduce hauling costs, and improve operational efficiency.
Start by considering the volume and type of material you process along with available floor space and ceiling height. Our team can review your operation and recommend the baler that fits your needs without being undersized or unnecessarily large.
Komar balers meet or exceed ANSI and OSHA standards. Each unit includes safety interlocks on doors, clear control labeling, and UL-listed electrical components to reduce operator risk and maintain compliance.
Yes. Plastic film and shrink-wrap can be baled, but they require more compaction force than cardboard. Heavy-duty or high-pressure models are recommended, and adding bale retainers such as floppy dogs helps prevent spring-back and ensures dense, stable bales.
Installation requires a level concrete pad, three-phase electrical power, and enough overhead clearance for the cylinder when it is fully extended during bale ejection. Site specifications should be discussed with your sales representative prior to purchase or installation.
Inspect hydraulic systems and safety features monthly. Komar offers a Preventative Maintenance Program with scheduled service at least twice a year, plus nationwide parts and service support to keep your baler running reliably.
Most facilities achieve ROI within 12 to 24 months by reducing hauling costs, improving operational efficiency, and earning higher rebates on mill-size bales.
Yes. Every baler includes a detailed user manual and access to Komar’s expert support team for troubleshooting, parts, and maintenance guidance. On-site training can be arranged upon request, and our service technicians are available nationwide for repairs and scheduled maintenance.
A 60-inch baler can handle cardboard (OCC), mixed paper, shrink-wrap, plastic film, PET bottles, aluminum cans, and textiles. Heavy-duty models are recommended for dense or springy materials like plastics and film.
Most 60-inch balers require a footprint of six to eight feet wide and four to five feet deep, plus overhead clearance for the cylinder when fully extended. Always confirm site dimensions with your sales representative before installation.
Produce mill-size bales that meet industry standards for weight and density. Using the right baler for your material stream and adding options like bale retainers can improve bale integrity and help you qualify for the highest rebate rates.
We are a waste solutions company. With a wide array of application-specific models and advanced engineering capabilities, we look forward to guiding you to the best solution for the job.
Schedule a free waste stream evaluation to identify the right equipment and processes for your space, waste types, and volume.
The 60-inch vertical baler remains one of the most widely adopted recycling machines industry-wide—and for good reason.
The Universal Fit
This baler size fits a wide range of environments, including:
Its footprint and bale output strike a balance between capacity and space efficiency.
Why 60″ Balers Are So Widely Used
A 60″ baler serves as a dependable, scalable foundation for long-term material management.
