Komar Auger-Pak®

EM-General Series Compactors

  • Shreds and compacts in one machine
  • Substantially reduces transportation costs of general waste compactors
  • Eliminates the need for a dangerous manual breakdown of general waste compactors
  • Safely handles tramp metal such as nails and bolts
The Komar auger has increased daily soft trash, wood pallets, and general trash efficiency by 30%, and 40% with furniture. I love to give shock and awe tours to show off the Auger-Pak®
. – Bob Kagle, Director of Retail Logistics Goodwill SWPA
EM General Series auger compactor
Industry leaders choose Komar for general waste solutions.
Industry leaders choose Komar for general waste solutions.

Series Models

EM-15G model size comparison

EM-20G model size comparison

EM-40G model size comparisonEM-40GHS model size comparisonEM-60G model size comparison

EM-15G | EM-20G | EMD-2020 |EM-40G | EM-40GHS | EM-60G

EM-15G

Komar EM-15G auger compactor
Processing Specifications
Horsepower 15
General Waste 2.76  tons/hr
Cardboard 1  ton/hr
Feed Type Hand, Forklift
Receiving Container Roll-off 40 cu. yd.
Tons/Container 4-8 (Depending on material and feed method*)
Physical Specifications
Footprint (L x W x H) 89.6″ x 72″ x 60″
Chamber Size (L x W) 60″ x 59.25″
rpm 7.42
torque (ft-lbs) 10,624
Weight (lbs)** 10,625
*Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
**The weight includes the entire Auger-Pak® system with a standard plugin hopper

X
X
General Waste
Cardboard

EM-20G

Komar EM-20G auger compactor
Processing Specifications
Horsepower 20
General Waste 4.9  tons/hr
Cardboard 2.5  tons/hr
Furniture 1.5  tons/hr
Feed Type Hand, Forklift, Tipper, Conveyor
Receiving Container Roll-off 40 cu. yd.
Tons/Container 4-8 (Depending on material and feed method*)
Physical Specifications
Footprint (L x W x H) 102.06″ x 83″ x 67″
Chamber Size (L x W) 70″ x 69.5″
rpm 5.97
torque (ft-lbs) 17,602
Weight (lbs)** 15,275
*Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
**The weight includes the entire Auger-Pak® system with a standard plugin hopper

checkbox Increased efficiency 30%
checkbox Increased payloads 100%
checkbox Decrease pickups
Equipment: 2 Auger-Pak™ EM-20Gs Site: Pittsburg, PA
equipment installed at Goodwill
“Our facility is a 110,000-sq.ft. Operations Center for Goodwill of Southwestern Pennsylvania. We get between 1.2 to 1.5 million pounds of material a day, and tonnage increases significantly during the summer. The Komar Auger has increased daily soft trash, wood pallets, and general trash efficiency by 30% and 40% with furniture. I love to give shock and awe tours to show off the Auger-Pak®
, which compacts 8.5 to 9 tons into each payload.”  – Bob Kagle, Director of Retail Logistics


X
X
EM-20G General Waste
EM-20G Cardboard

EMD-2020

Komar EM-20G auger compactor
Processing Specifications
Horsepower Drive 1 20
Horsepower Drive 2 20
General Waste 1.8  tons/hr
Feed Type Hand, Tilt Truck, Tipper
Receiving Container Roll-off 40 cu. yd.
Tons/Container 4-8 (Depending on material and feed method*)
Physical Specifications
Footprint (L x W x H) 92″ x 96″ x 50″
Chamber Size (L x W) 64″ x 84″
rpm 9.47
torque (ft-lbs) 520 psi per auger
Weight (lbs)** 14,933
*Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
**The weight includes the entire Auger-Pak® system with a standard plugin hopper

EM-40G

Komar EM-40G auger compactor
Processing Specifications
Horsepower 40
 General Waste 6 tons/hr
Furniture 3 tons/hr
Feed Type Hand, Forklift, Tipper, Conveyor
Receiving Container Roll-off 50 cu. yd.
Tons/Container 6-10 (Depending on material and feed method*)
Physical Specifications
Footprint (L x W x H) 115.75″ x 91.75″ x 68.5″
Chamber Size (L x W) 80″ x 75.25″
rpm 7.42
torque (ft-lbs) 28,331
Weight (lbs)** 19,085
*Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
**The weight includes the entire Auger-Pak® system with a standard plugin hopper

EM-40GHS

Komar EM-40GHS auger compactor
Processing Specifications
Horsepower 40
Cardboard 5  tons/hr
Feed Type Hand, Forklift, Tipper, Conveyor, Chute
Receiving Container Roll-off 50 cu. yd.
Tons/Container 6-10 (Depending on material and feed method*)
Physical Specifications
Footprint (L x W x H) 115.75″ x 91.75″ x 68.5″
Chamber Size (L x W) 80″ x 75.25″
rpm 14.83
torque (ft-lbs) 14,165
Weight (lbs)** 18,825
*Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
**The weight includes the entire Auger-Pak® system with a tall plugin hopper

EM-60G

Komar EM-60G auger compactor
Processing Specifications
Horsepower 60
General Waste 6.4  tons/hr
Feed Type Hand, Forklift, Tipper, Conveyor, Chute
Receiving Container Roll-off up to 75 cu. yd. or transfer trailer
Tons/Container Up to legal road limit
Physical Specifications
Footprint (L x W x H) 128.25″ x 92″ x 65.5″
Chamber Size (L x W) 92″ x 75.25″
rpm 10.17
torque (ft-lbs) 30,972
Weight (lbs)** 24,258
*Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
**The weight includes the entire Auger-Pak® system with a standard plugin hopper

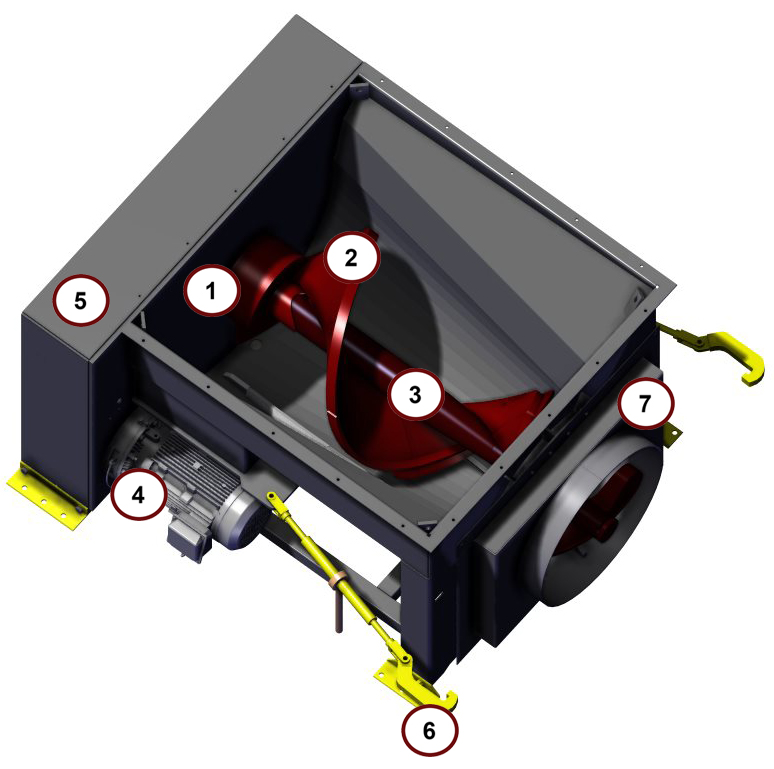

Series Technology

series tech specifications

1Patented Solid Lube Bearing Support System

Allows for the use of the biggest and most powerful auger screws in the industry, resulting in maximum compaction force.

2Cast Steel Flights 3Tapered Solid Alloy Steel Shaft

Using the highest quality components to construct our auger screws provides extended service life. The density and shape of the cast flights increase strength and durability and more efficient material delivery to the receiving container. Our patented tapered shaft uniquely distributes forces along the shaft, minimizing stress on the bearings and maximizes shaft life.

4Cycloidal Drive with 500% Shock Load

Don’t judge a drive strictly by the motor’s horsepower, especially when you plan to process heavy industrial materials. A high shock load rating is vital in giving the compactor the ability to crunch through large loads without causing damage to the drive.

5Worry-Free Chain and Bearing Lubrication System

The engineered, automatically lubricated chain, coupled with the self-lubricating bearing system, cuts down routine maintenance.

6Ratchet Binders 7Container Adaptor

The auger compacts directly into a standard roll-off receiving container typically provided by your local hauler and meet ANSI and OSHA specifications.

Compare our technology:

+ Auger-Pak® vs. Ram Compactor

1.) More efficient processing
2.) Fewer material jams
3.) Compacts two to four times tonnage into each receiving container.
4.) Half the power consumption
5.) Smaller footprint
6.) Easier to maintain

+ Auger-Pak® vs. Auto-Tie Baler

1.) More efficient processing
2.) Fewer material jams
3.) No auto-tie system. No baling wire to buy and store.
4.) Eliminates the double and triple material handling inherent in moving bales.
6.) Sits outside of the facility and compacts directly in the receiving container – no bales to store
7.) A lot of valuable floor space is given back to your primary business operations.
8.) It only requires one part-time operator to run and maintain.
